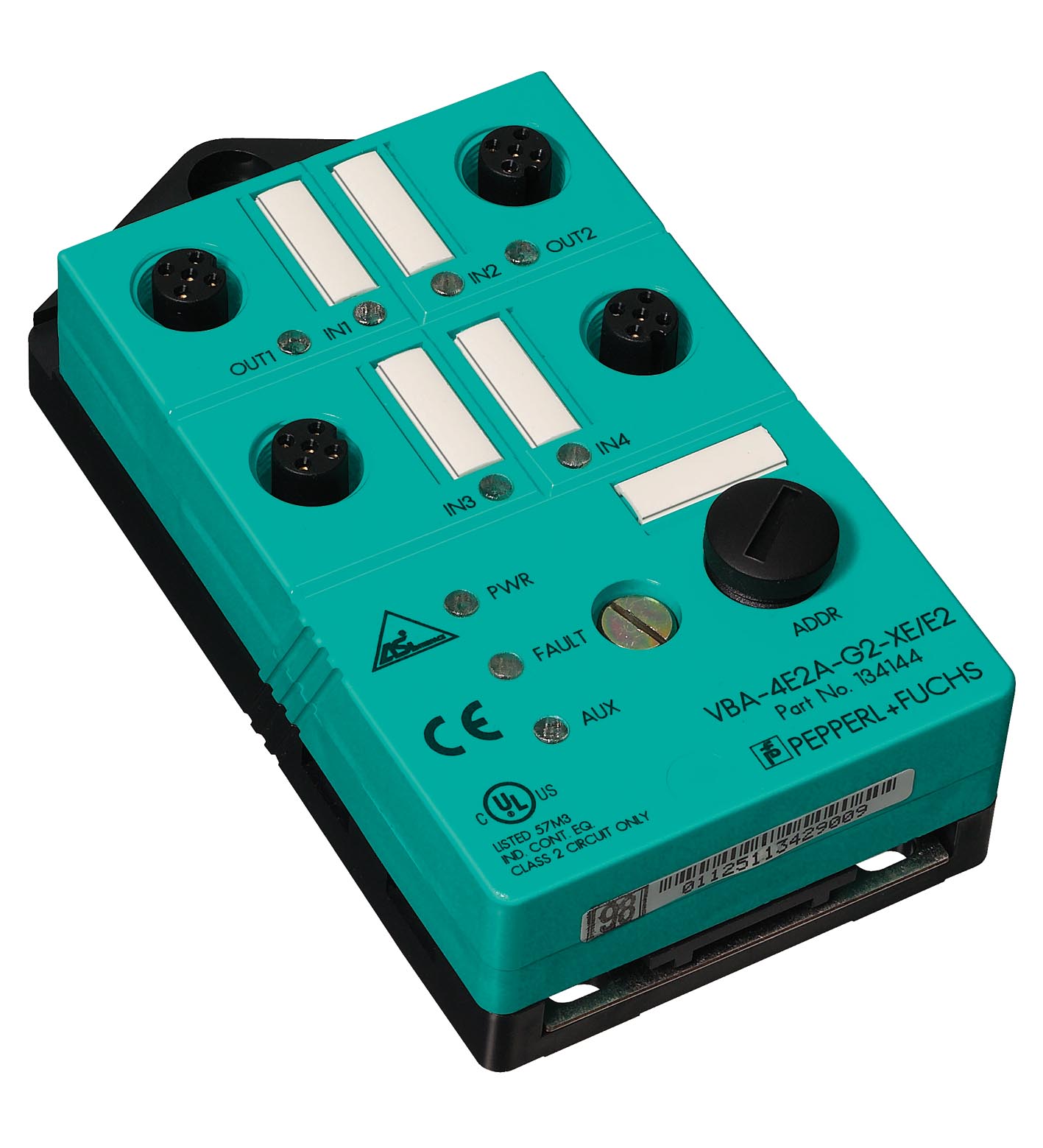

VBA-4E2A-G2-XE/E2 - 134144

As-I Arayüzü Sensör/Aktüatör Modülü

Öne Çıkan Özellikler

➤ AS-i Arayüzü certificate

➤ Degree of protection IP67

➤ A/B node with extended addressing possibility for up to 62 nodes

➤ Addressing jack

➤ Flat cable connection with cable piercing technique, variable flat cable guide

➤ Communication monitoring

➤ Inputs for 3-wire sensors (PNP) and mechanical contacts

➤ Power supply of the inputs and outputs from the external auxiliary voltage

➤ Ground connection (FE) possible

➤ Function display for bus, ext. auxiliary voltage, inputs and outputs

➤ Detection of output overload
