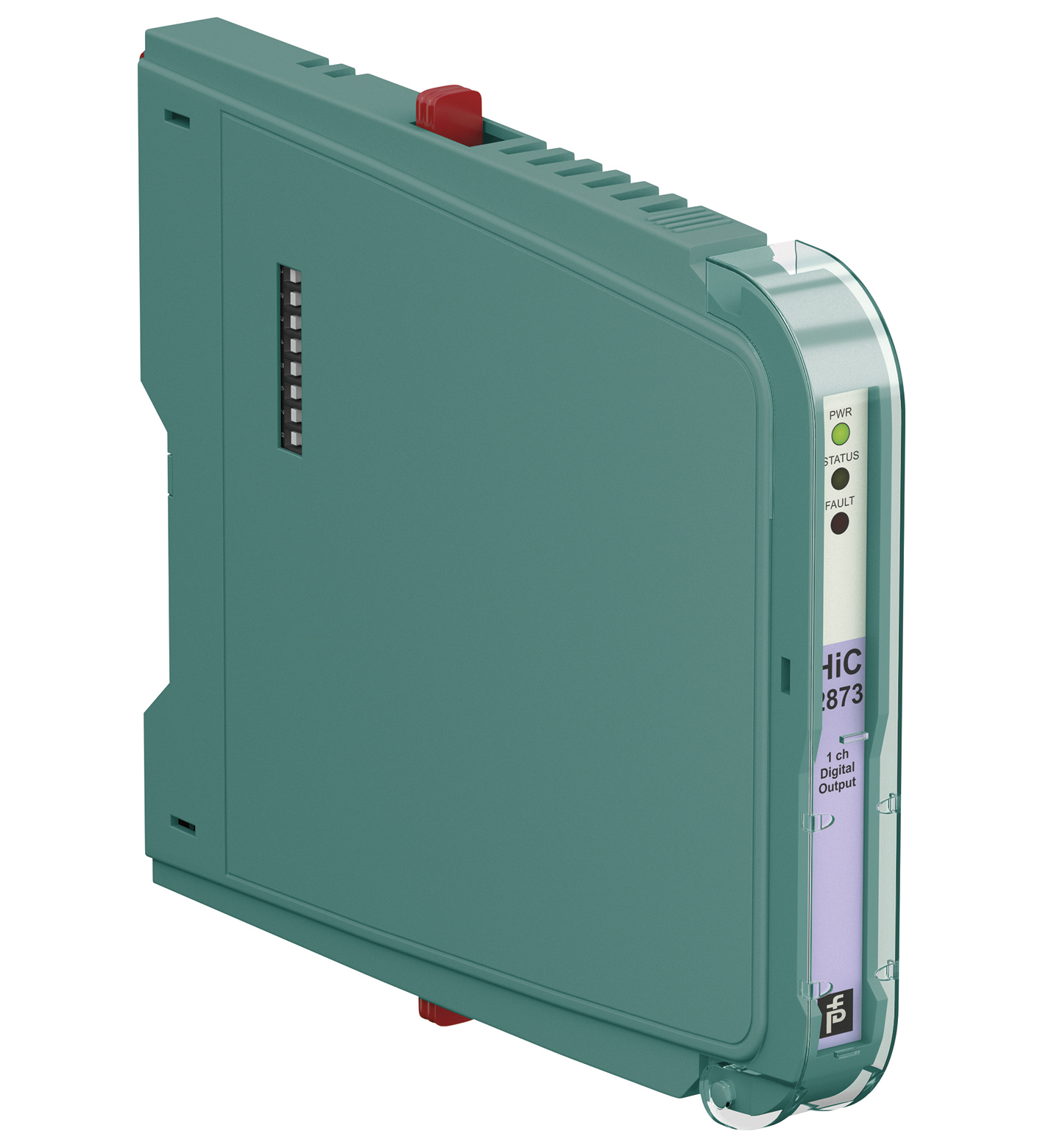

HiC2873 - 278990

Solenoid Sürücüsü

Öne Çıkan Özellikler

➤ 1-channel isolated barrier

➤ 24 V DC supply (bus or loop powered)

➤ Output 40 mA at 12 V DC, 55 mA current limit

➤ Contact or logic control input

➤ Entity parameter Io/Isc = 110 mA

➤ Line fault detection (LFD)

➤ Test pulse immunity

➤ Up to SIL 2 acc. to IEC/EN 61508 (bus powered)

➤ Up to SIL 3 acc. to IEC/EN 61508 (loop powered)
