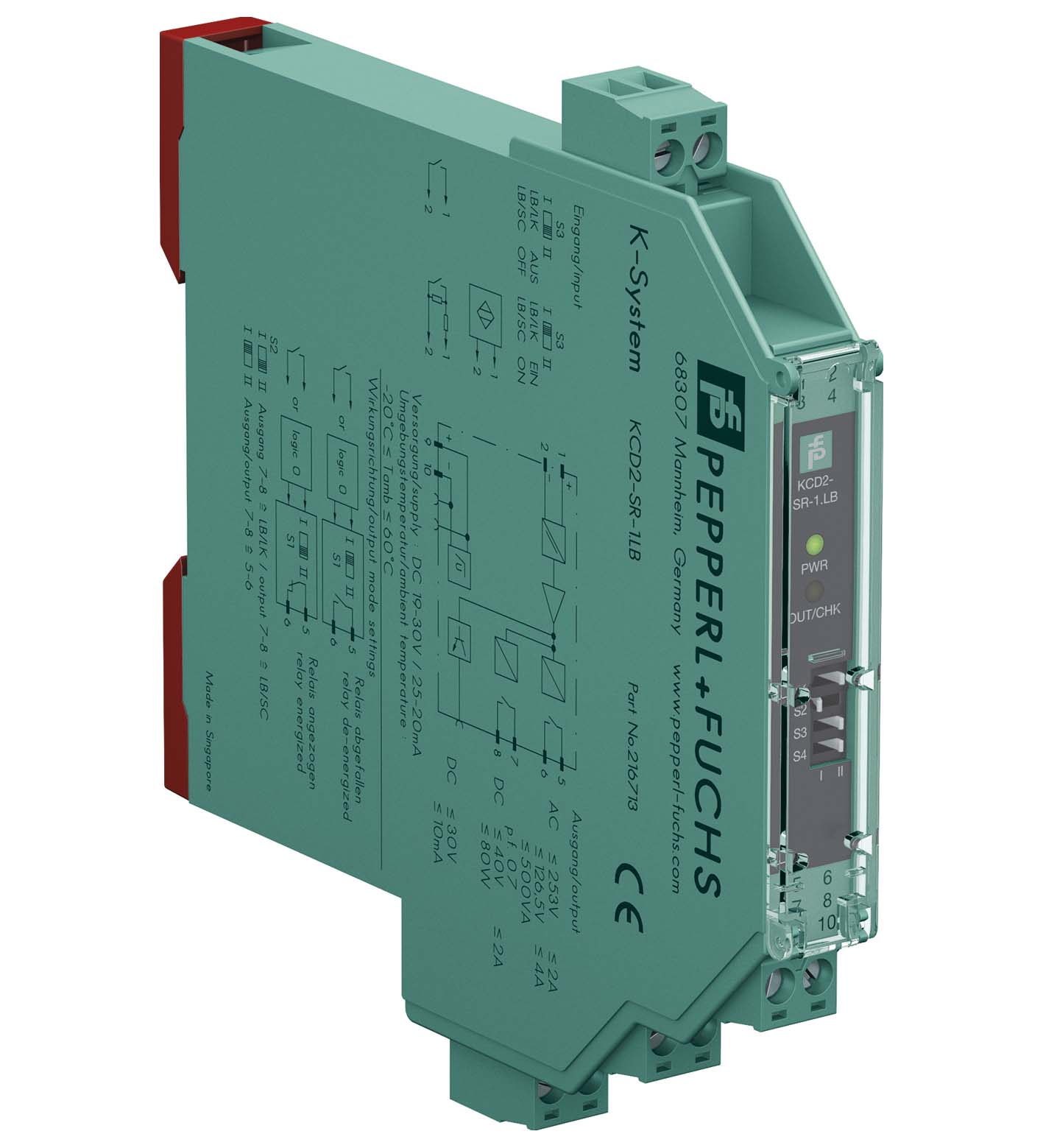

KCD2-SR-1.LB - 70112146

Anahtar Amplifikatörü

Öne Çıkan Özellikler

➤ 1-channel signal conditioner

➤ 24 V DC supply (Power Rail)

➤ Dry contact or NAMUR inputs

➤ Usable as signal splitter (1 input and 2 outputs)

➤ Relay contact output

➤ Fault relay contact output

➤ Line fault detection (LFD)

➤ Housing width 12.5 mm

➤ Up to SIL 2 (SC 3) acc. to IEC/EN 61508
