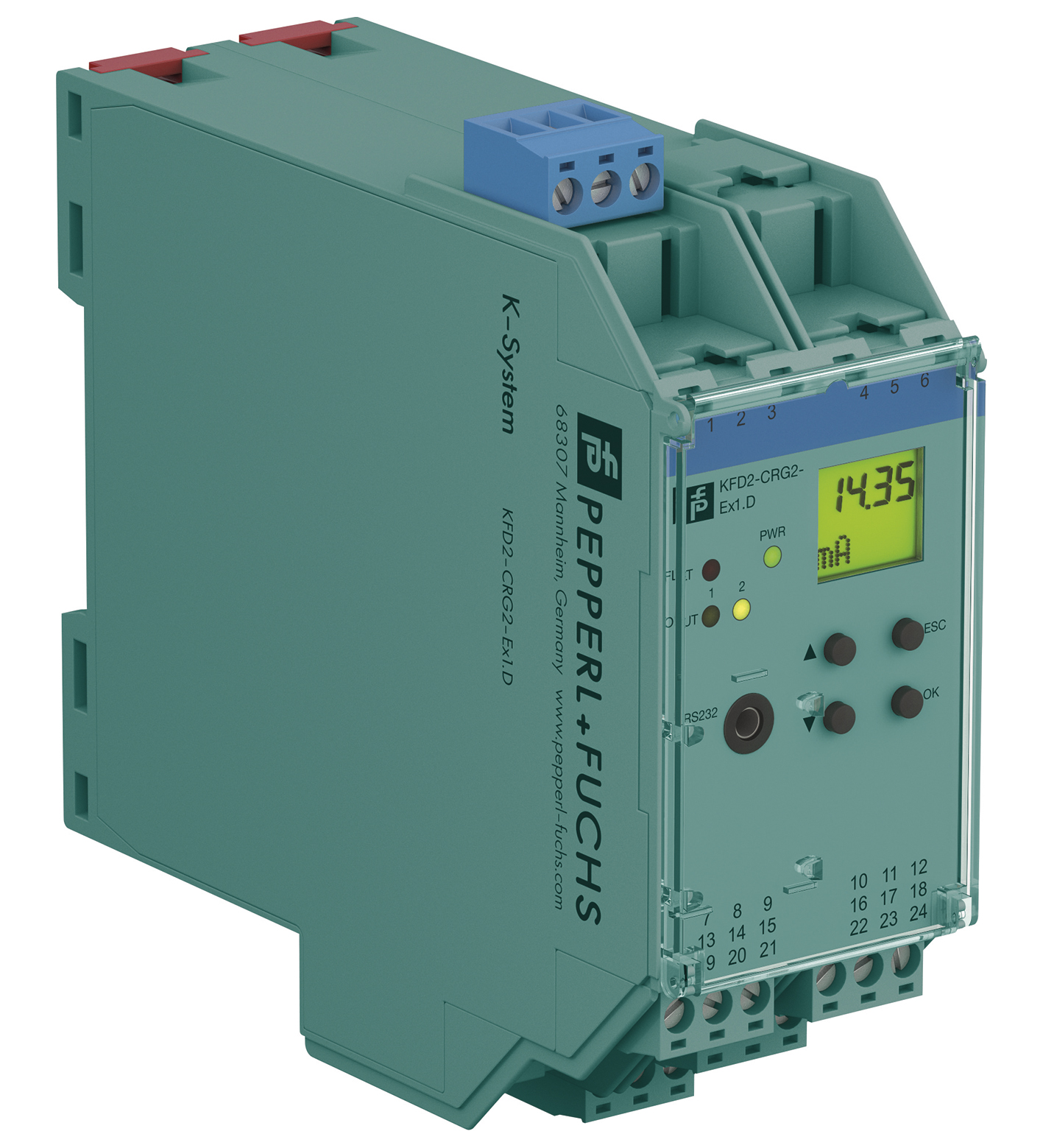

KFD2-CRG2-Ex1.D - 255620

Verici Güç Kaynağı

Öne Çıkan Özellikler

➤ 1-channel isolated barrier

➤ 24 V DC supply (Power Rail)

➤ Input 2-wire and 3-wire transmitters and 2-wire current sources

➤ Output 0/4 mA ... 20 mA

➤ 2 relay contact outputs

➤ Adjustable energized/de-energized delay

➤ Programmable high/low alarm

➤ Linearization function (max 20 points)

➤ Line fault detection (LFD)

➤ Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
